Getting the Mix Right at EW Packaging

Gentle blending

In search of a solution to improve its blending operation, EW found Munson Machinery online. That led to Lonas purchasing a 15-cu ft (425 L) Munson Rotary Batch Mixer machine that loads, blends, and discharges in about 15 minutes—half the time of the previous blenders.

The unit’s horizontal vessel rotates on external trunnion rings located at each end, handling ingredients gently because it has no agitators. Instead, the vessel has internal flights that create a four-way tumble-turn-cut-fold mixing action, producing homogenous blends without generating heat, shear, or stratification. Lacking internal shafts, the mixer has no seals that are in contact with the product.

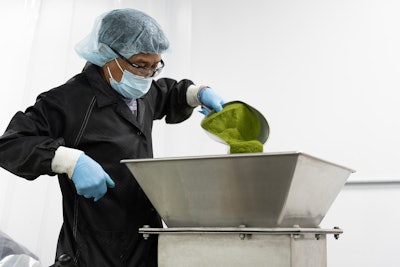

To initiate a blending cycle, operators hand weigh ingredients into a drum. A plant-based protein product may contain up to eight ingredients, while a flavored creatine product may contain up to four. The drum containing the weighed batch is then lifted onto a mezzanine and dumped through a security screen into a hopper that discharges into the mixer’s stationary inlet. A collection hood contains fugitive dust during the loading process, while a single external seal prevents the escape of dust during vessel rotation.

Lonas highlights the Rotary Batch Mixer’s gentle mixing action in his business conversations. “It’s part of my sales pitch for whatever the job is — encapsulation, tableting or just blending a powder,” he says. “This mixer just folds in the ingredients. It’s not smashing them or pounding them together.”

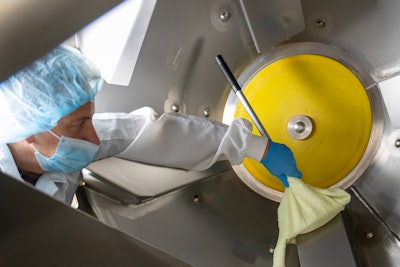

EW Packaging says its mixer’s gentle four-way action leaves almost no residue, simplifying cleaning between batches.Munson MachineryBlends are discharged from the mixer through a stationary outlet. Batches destined for encapsulation or tableting flow into mobile hoppers that are rolled into the adjacent room for those processes. Powder products are discharged into a screw conveyor that transports the batch to the feed hopper of an auger filling machine, which dispenses it by weight into bottles, canisters, tubs, or most any container.

The vessel leaves almost no residue following discharge. “There aren’t any corners or pockets that can collect powder,” Lonas says. Between blending campaigns and when switching products, operators wash, rinse, and swab-test the vessel interior in accordance with GMP.

Lonas says that the blends are always on-spec, and overages range between 2 percent and 3 percent instead of 10 percent previously. “I sold my V-blender and my ribbon blender. The Rotary Batch Mixer gives us a perfect HPLC test every time.”

Small size, big output

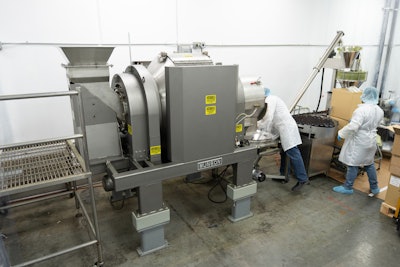

The Rotary Batch Mixer discharges to a screw conveyer, which transfers mixed powder products to an auger filling machine.Munson MachineryDespite its modest volumetric capacity, the mixer outputs high volumes because it loads and discharges quickly and blend times are short, as little as 3 to 6 minutes, Lonas says. “When we started getting bigger orders, we got nervous at first thinking our mixer wasn’t big enough, but we ran some big orders with no problems.” In one case, EW Packaging blended some 80 batches of a protein powder over four days, filling all of it into 5 lb (2.3 kg) tubs.

“The future for us is growing the powder business because we have our powder lines so dialed in. It’s a profitable and a fast way to fill bottles,” says Lonas.

 EW fills as many as 50,000 bottles a day, which includes capping, induction sealing, metal detecting, check-weighing, labelling, lot coding, and neck banding.

 Lonas says that EW Packaging seldom tells customers ‘no’ unless they come to them with a liquid.

 “If we don’t have the right machinery, we buy it. Our niche is getting new products going for people and cranking it out, getting them into the market fast. We get a lot of business because of our blister and short-run capabilities. There aren’t many other places on the West Coast that can do that.”

 Lonas calls the mixer his workhorse. “I think we changed a seal once. There’s not much maintenance to do on it. It’s one of our most reliable machines.”
